Vegetable Slicing & Shredding Machine, QS3T/2

QS3T/2

Vegetable Processing Equipment

Vegetable Slicing & Shredding Machine

Cutting vegetables into slices or strips

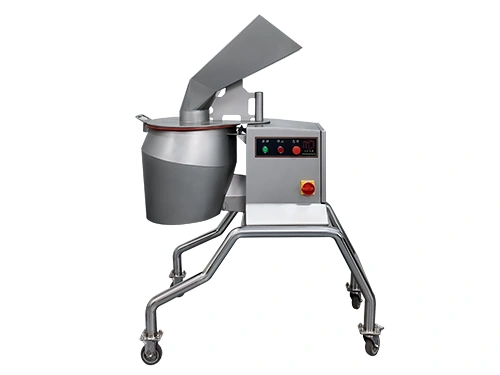

The vegetable slicing & shredding machine is a low-noise machine designed for shredding and slicing vegetables and fruits such as potatoes, radishes, leaf mustard, and sweet potatoes. It is ideal for factories producing dehydrated vegetables, cutting French fries or potato chips, as well as for supermarkets and fresh produce processing facilities.

Equipped with speed control, the machine allows the rotation speed to be adjusted according to vegetable moisture content, ensuring high yield and optimal processing efficiency. The motor is controlled by an inverter, providing smooth startup and reliable operation. It maintains consistent forward rotation regardless of power phase sequence, preventing reverse operation even if the power connections are reversed.

Key Components

Frame, housing, feeding hopper, cutting mechanism, transmission system, feed inlet, and control system

Request a Quote

Specifications

Model	Voltage (V)	Power (kW)	Capacity (kg/h)	Feed inlet size (mm)	Number of blades	Dimensions (mm)	Weight (kg)
QS3T/2	220/380	1.1	3000	480×255	12	1280×680×1650	130

Features

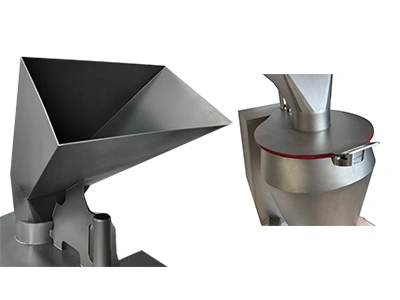

Large feed inlet and discharge openings, combined with a fully open design, make loading and unloading easy and convenient. The cover is equipped with a safety cut-off that prevents the machine from starting unless the cover is closed and immediately stops operation if opened during use

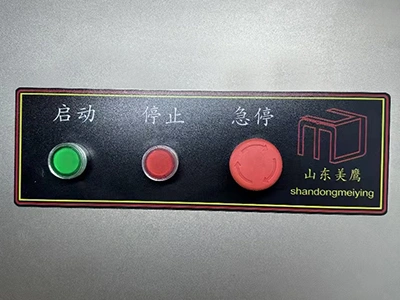

User-friendly button controls include a separate main power switch for easy shutdown

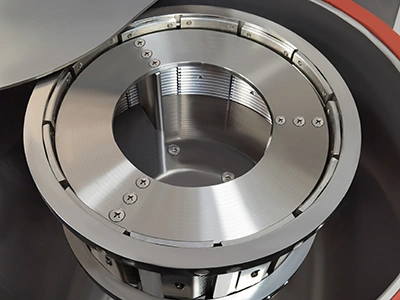

Equipped with 12 integrated cutting blades for versatile slicing
